MarvinSketch Structure Display Example

Concepts

The description and usage of R-group structures in Marvin can be found in the R-groups and How to Draw R-group queries paragraph of the Marvin User's Guide.

The detailed description of R-group structures can be found in the R-group structures paragraph of the Developer's Guide.

How to work with structure display parameters to hide R-group definitions

By default, MarvinSketch displays all the R-group definitions that belong to a scaffold. Sometimes it's very practical to hide the R-group definitions because they take up too much place from the display and we would like to emphasize the scaffold.

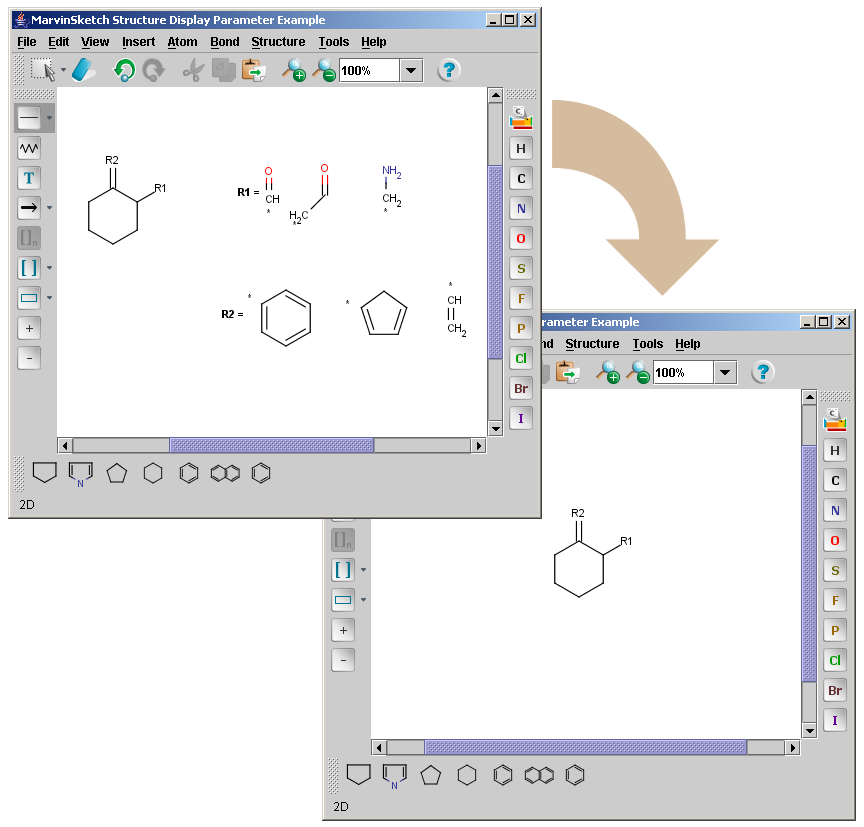

The result of switching off the R-group definitions can be seen on the picture below:

The code below is taken from SketchParams.java, where the R-group definitions are hidden using the setParams method of the MSketchPane class.

    msketchPane.setParams(ParameterConstants.R_GROUPS_VISIBLE+"=false");
